It is the 40th anniversary (1976) of the movie
Rocky! What does this have to do with Kintecus?
Both were made in my hometown of Philadelphia! While other codes were developed
in National Labs or Universities, Kintecus was actually written in a row house
in West Philadelphia.
The Kintecus simulation software has been
cited in many peer reviewed high impact factor journals: JACS,
Phys. Chem.A, NATURE, PCCP, J. Biol. Chem., Plas. Chem. Plas. Proc., Int. J. Chem. React.
Tech, Arch. Bio. Chem. Bio. Phys., THEOCHEM, and many others. Click the Papers button on the left side to see some.
Academic/Educational users can now
apply for free
Kintecus and ATROPOS license keys. Click Academic Reg for
What's New -
A beta version of Kintecus has been released.
I've converted several dozen LLNL models over to Kintecus. Several Biodiesel
model surrogates, gasoline surrogate, diesel surrogates and their reduced models
as well as some pure models (isooctane, carbonates, etc) have been ported. There
are also some organophosphate and TNT models from LLNL converted (8/21/2016).
Kintecus version 5.75 has been released (10/24/2015).
Package corrections for Windows10. General Bug corrections.
See What's New for full details!

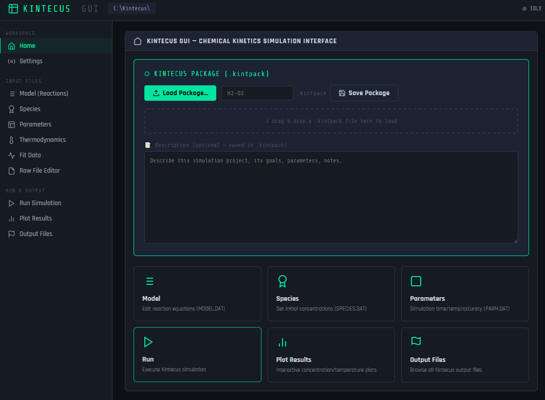

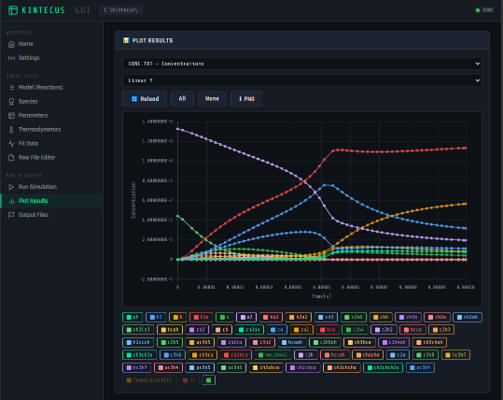

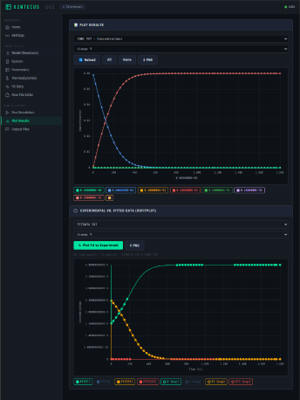

Graphical Interface - Some screen shots of the
graphical interface for Kintecus. Download - download Kintecus, pre-post processors, models or
read the online documentation! Testimonials - read what others think about Kintecus Papers - view published refereed papers that
and User submitted Kintecus material FAQ - Frequently Asked
Questions Register/Purchase/Buy/License - Register or Buy Kintecus
Licenses Here! Foreign payment options for the European, Australian and Asian Continents
are now available! Atropos - Tired of large, slow, bulky chemical kinetic
reaction systems? Tired of referees claiming your large chemical mechanism is superfluous
and/or redundant? Try the new Kintecus software addition : Atropos
For Acolytes of Kintecus here is a small list of the program's
What Is Kintecus ????
The Kintecus simulation software has been cited in many peer reviewed journals: J. Phys. Chem.A, PCCP, J. Biol. Chem., Plas. Chem. Plas. Proc., Int. J.
Chem. React. Tech, Arch. Bio. Chem. Bio. Phys., etc. Click the Papers button on the left side to see some! Kintecus is a
powerful Industrial Strength/Research Grade chemical modeling software for simulation of
combustion, nuclear, biological, enzyme, atmospheric and many other chemical kinetic and
equilibrium processes. There are many features. One prime feature is the ability to
quickly run Chemkin/SENKIN II/III models without the use of supercomputing power or
FORTRAN compiling/linking. Multiple Chemkin/freestyle thermodynamic databases can be used.
Isothermal/Non-isothermal, adiabatic constant volume, constant pressure (variable volume)
can easily be modeled with a flick of a switch. Programmed volume (replicating engine
piston motion), programmed temperature, programmed species concentration can all easily be
included in your model WITHOUT C/FORTRAN programming. Heterogeneous chemistry is also
easily modeled. Now can now fit or optimize rate constants, initial concentrations,
Lindemann/Troe/SRI/LT parameters, enhanced third body factors, initial temperature,
residence time, energy of activation and many other parameters against your
KINTECUS - What can it do ?
Kintecus is a compiler to model the reactions of
chemical, biological, nuclear and atmospheric chemical kinetic and equilibrium processes
using three input spreadsheet files: a reaction spreadsheet, a species
description spreadsheet and a parameter description spreadsheet. For thermodynamics, an
optional thermodynamics description spreadsheet can be supplied. Kintecus has been
designed with ease of use in mind. Absolutely no programming, compiling or linking
A quick overview of the main features:
The ability to convert
Chemkin-II/Chemkin-III/Senkin models to Kintecus format. Kintecus can run almost any
converted Chemkin model. Once converted, you may apply any Kintecus feature to the system.
Do not be surprised to see the converted system run much faster! In addition, Kintecus can
use multiple Chemkin thermodynamic databases at the same time and provides a way to use
reserve species to a respective thermodynamic database. One can also convert
the databases to a freeform format, which can be loaded into Excel or Lotus
1-2-3. The freeform database is much easier to maintain and update. In
addition, the converted model is not limited to several elements, in fact, your model can
contain the entire Periodic Table.
Comes with multiple thermodynamic databases
containing thermodynamic data (G,E,H,S,Cp,K,Kp) on several
thousand species over a wide temperature range (300K-6000K)!
Reactions, adiabatic or non-adiabatic
(isothermal), can be performed under isochoric (constant volume) or isobaric
(constant pressure) with a simple flick of a switch along with
optional volume, temperature, concentration wave perturbations or set profiles.
The ability to model thousands and
thousands of reactions in a relatively short time. Kintecus has been used with
models as large as 120,000+ chemical reactions. You will not find anything faster than
A very thorough and easy to use Uncertainty
Analysis (Monte Carlo sampling runs) to
calculate "real-life" averaged behaviors with confidence
bands/standard deviations of your
chemical system given Gaussian/Poisson/Uniform deviations.
Fit/Optimize rate constants,
initial concentrations, Lindemann/Troe/SRI/LT parameters, enhanced third body factors,
initial temperature, residence time, energy of activation and many other parameters
against your dataset(s). Note that Kintecus will actually fit the parameters at EXACTLY
the time your data was measured. Unlike other programs, Kintecus DOES NOT interpolate a
function against your data and then fit the values against this interpolation. There is
absolutely no need to clean your data, suggest interpolation methods nor
specify timing meshes against your experimental data since Kintecus calculates values at
exactly the times you specify in your experimental datafile. Kintecus V3.8 and above can

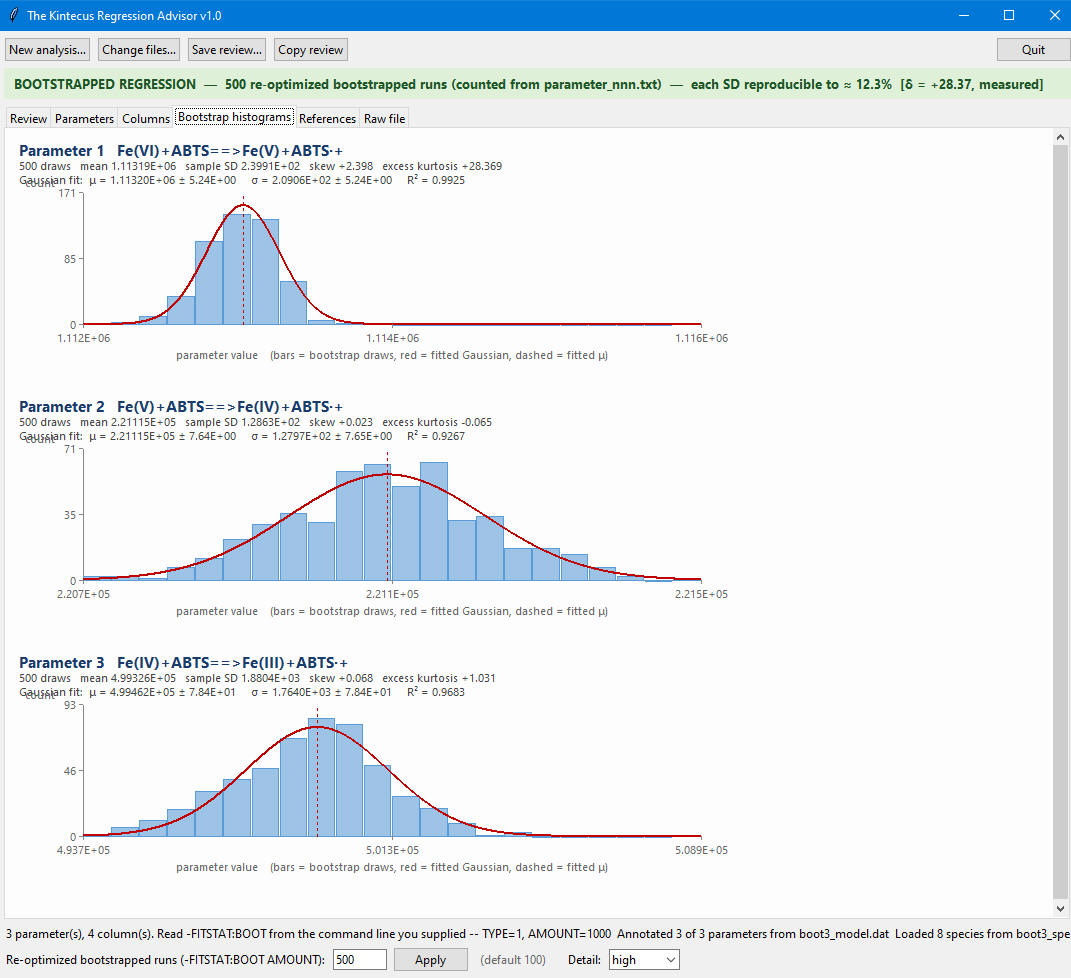

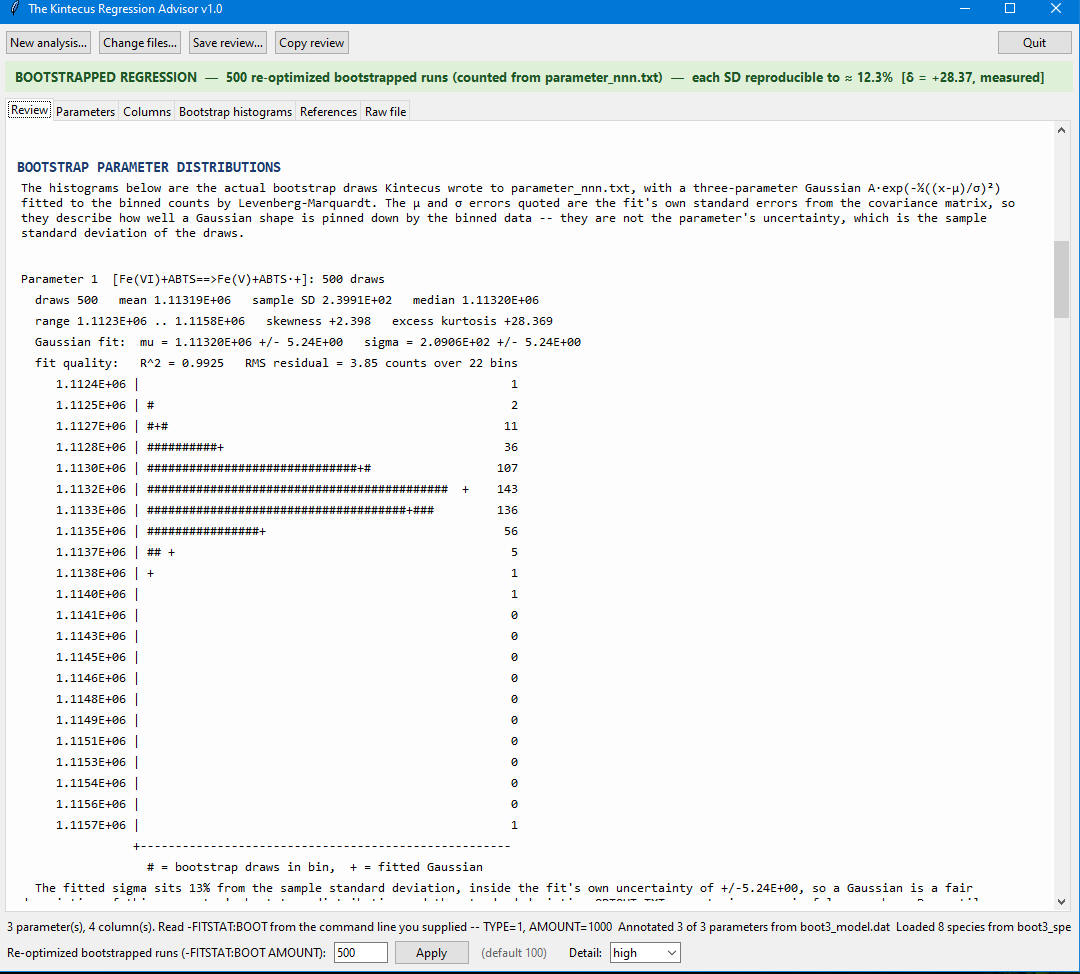

also perform accurate bootstrapping of errors.

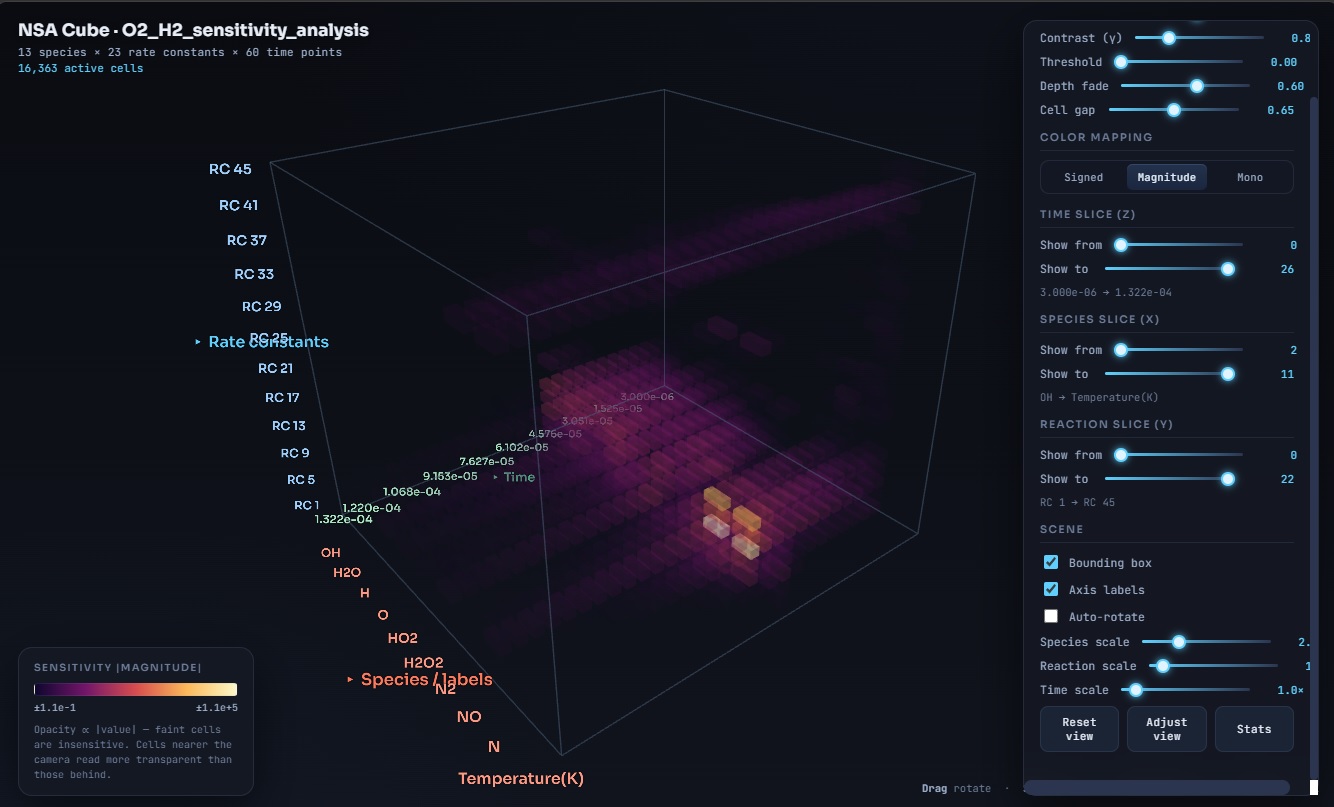

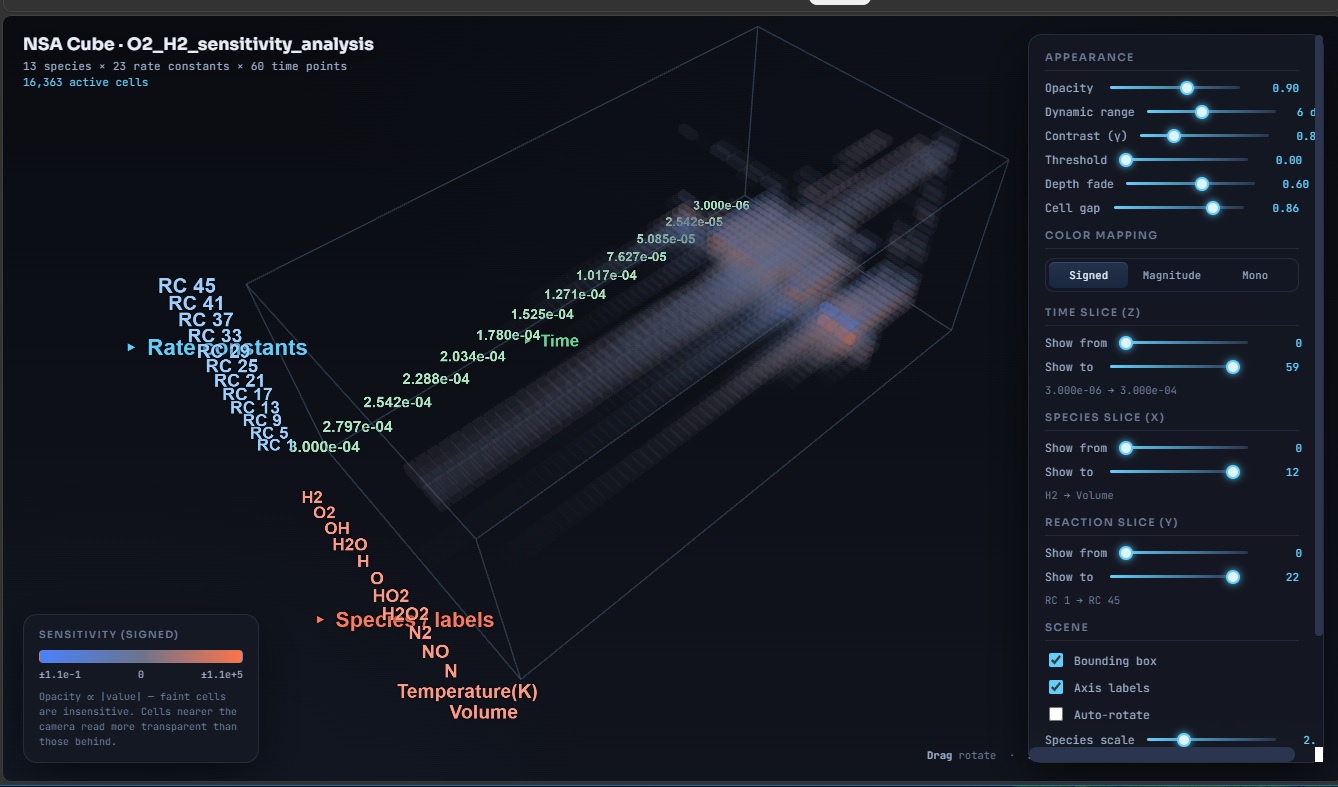

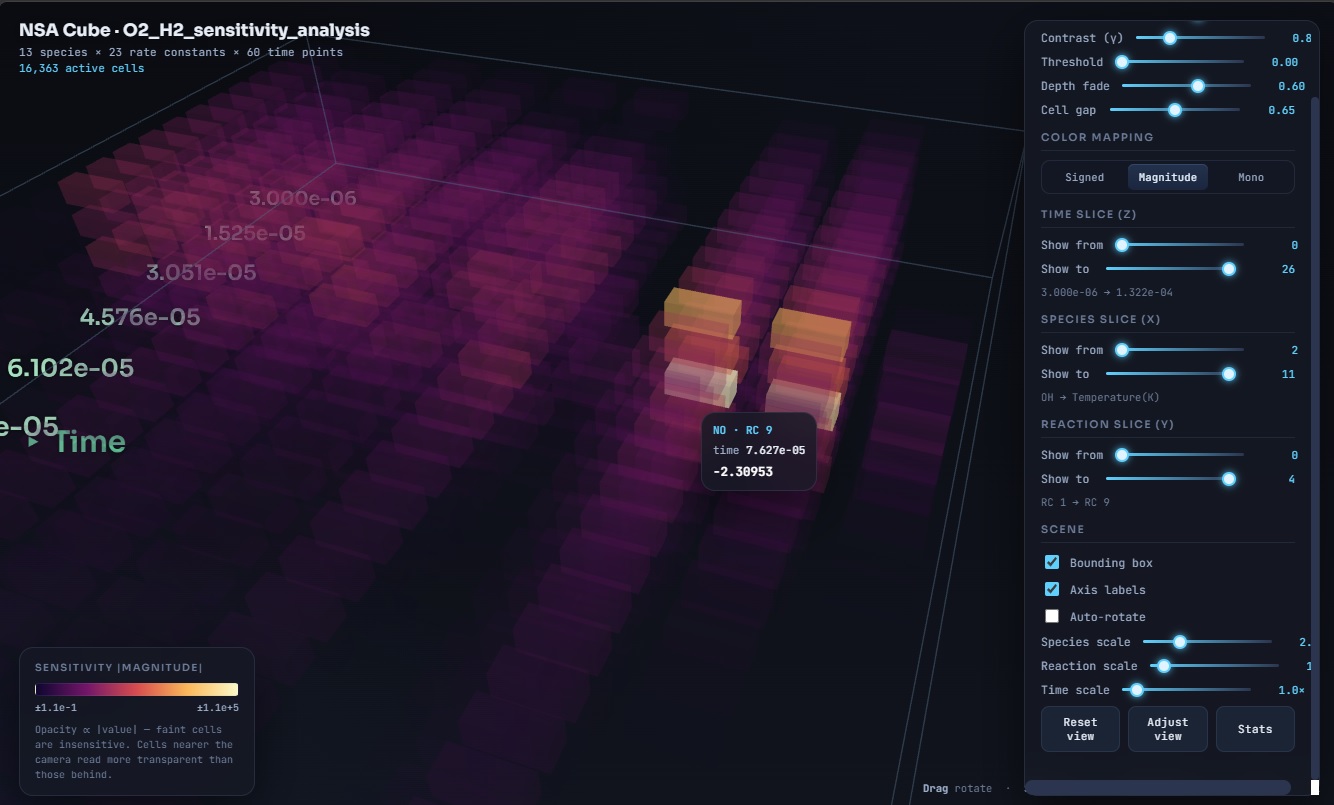

Full output of global normalized
sensitivity coefficients selectable at any specified time or times. Normalized
sensitivity coefficients are used in accurate mechanism reduction, determining which
reactions are the main sources and sinks (network analysis) and which also shows which
reactions require accurate rate constants and which ones can have essentially guessed rate
The ability to use profiles or
perturbations of any wave pattern for any species, temperature, volume or hv.
Using profiles/perturbations can also be used for studying very realistic systems, such as
quenching affects, dissolution of various gases into a system over time, induction of
current into a system, heat flow into a system, a piston compressing the reaction chamber
and so on.
A powerful parser with automatic mass & charge balance checker for those reactions that the graduate student "supposedly"
entered in correctly but the model is yielding incorrect results or is divergent. Do you
know a kinetics program that can completely parse and check for mass/charge balance on a
reaction like this:
This smart mass balance can be used for biological and nuclear reactions! Kintecus also
provides duplicate reaction and species checking.
As you can see in the above reaction, fractional
coefficients for species! Now you can finally model that last step in the
Oregonator or crunch 100 elementary reaction steps in one reaction step!
Built in support for special reactions such as: reactions
involving third-bodies (M), fall-off reactions (Troe, Lindemann, SRI, etc.) ,
enhanced third bodies, exclusive multiple enhanced third bodies, vibrational transfer
reactions (Landau-Teller) and many others.
Some heterogeneous chemistry can
be modeled. For example, a species in the aqueous phase will not contribute to the overall
pressure in the system or be involved in third-body reactions or fall- off reactions.
Gaseous species can enter other phases through out a simulation and
Automatic generation of the
species spreadsheet file using the reaction spreadsheet file. Why waste time finding,
entering and initializing all the different species in your kinetic scheme?
The ability to do reactions in a continuous
stirred tank reactor or homogenized plug-flow reactors
(CSTR,PFR) with multiple inlets and outlets and independent
Equilibrium calculations. Why design a kinetic
scheme when all you have to do is give
Kintecus a listing of all the relevant species in your system. No need for ANY
REACTIONS! In fact, you do not even have to specify which species are reactions
products! You can even perform phase stability plots of systems over ranges of
pressures, volumes and concentrations of other species. You can even fit/optimize
experimental data against your equilibrium model.
The ability to compute all internal Jacobians
analytically. This is very useful for simulating very large kinetic mechanisms
(more than 50,000 chemical reactions). Finite difference methods can cause underflow or
overflow errors in approximately such large Jacobians during the simulation.
Perform eigenvalue-eigenvector analysis of the Jacobians
of the system as the model runs. This is useful for metabolic control analysis (stability
Easily perform four types of scanning:
combinatorial, parallel, parallel-repeat and sequential.
Dynamic mode for feedback and/or dynamic
simulation runs and external user control of Kintecus.
The ability to perform complex hierarchical cluster analysis on
temporal concentration profiles of the network with/without experimentally
obtained temporal concentration profiles. Hierarchical cluster analysis in Kintecus has
the ability to group related and unrelated parts of temporal concentration profiles in a meaningful,
quantitative way. This grouping allows a user to clearly see patterns
that were initially indiscernible or hidden.
Multiple-channel Reactions Utilizing Chebyshev Polynomials. Kintecus
V5.5 and up now support the Chebyshev expansions proposed by Venkatesh for
representing pressure fall off and temperature dependant rates of multiple
well reactions. Please see those references for the list of equations that
are utilized in Kintecus to calculate those rates.

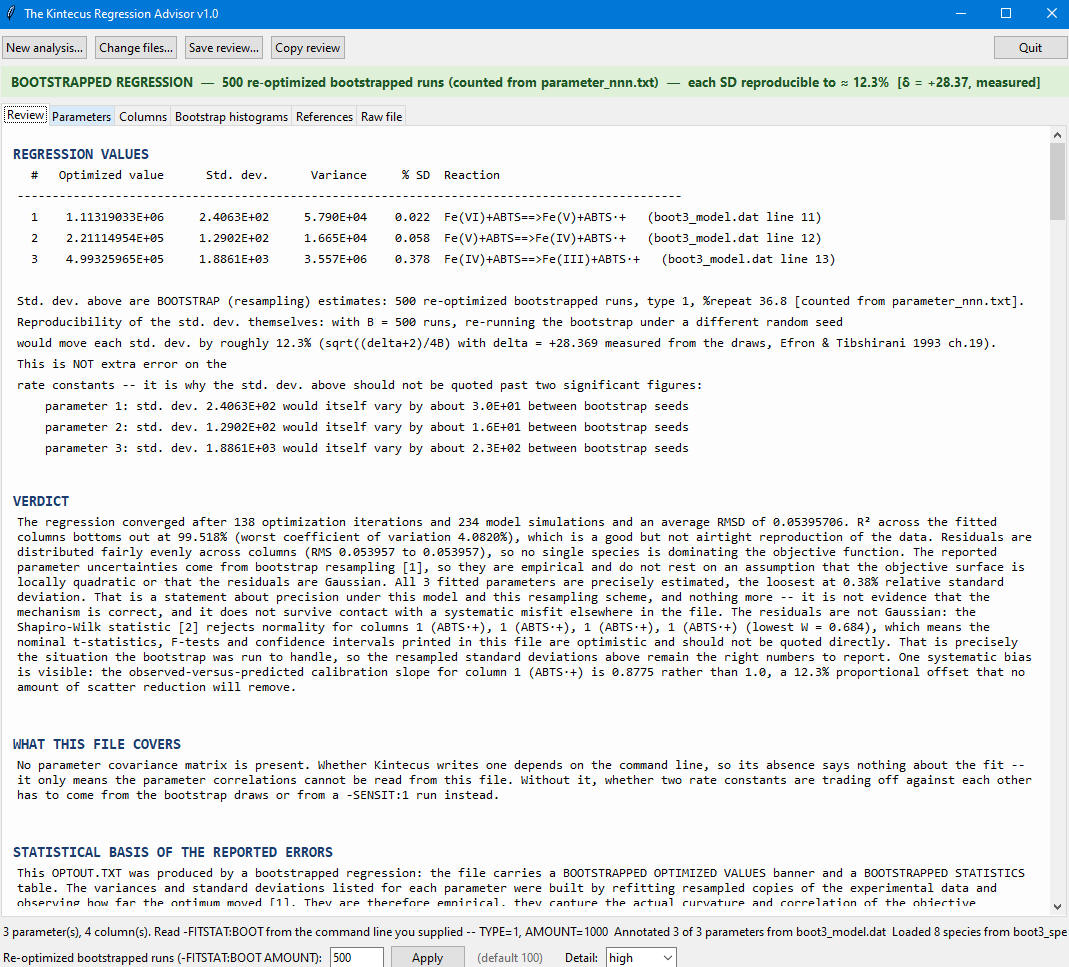

Regression/Fitting/Optimization Analysis: Kintecus V5.0 and up now
supports an extremely powerful global data
regression/fitting/analysis. You can regress or fit or optimize multiple
datasets that have multiple initial conditions such as temperatures,
pressures, concentrations or any combination and with data sets that have
different time scales, different time steps, different species, temperature
profiles, heat output, different amount of data points, etc. There are many
sample Kintecus-Excel worksheets demonstrating some basics of this new
Fitting/Regressing with Heat Output: Kintecus V5.00 and up now supports the ability to regress/fit
against heat generated during a reaction.
Users can utilize the OUTC operator for a species for
reaction rates that involve families of species such as "ROH=[C2H5OH]+[C3H7OH]+[C4H9OH]+..."
This section is for people who do not read or even scan the main
documentation. If you still cannot run your model after following the below short
procedure then you should read the tutorial in the first section of the documentation.
) Go into command mode (on the Windows start button select RUN,
type "command" and press the <ENTER> key ) and create a file named
MODEL.DAT. If you have Excel97/2000/XP or Sun Microsystem's Star-Office
or OpenOffice.org you can use the blankKintecus_workbook.xls or Enzyme_Regression_Fitting.xls
or GRI_MECH_30.xls EXCEL Visual Basic graphical interface modules and click the MODEL
tab located at the bottom. If you use a text editor than enter your reactions like so:
1.323e-4, A- + Widget-- + C==>G+++ + F---+H20
3.2 , E+F ==> G + DNA_A_Replicated
54.34 , G = A
END ( <==-- Make sure this END is here)
If you have Arrhenius expressions, then do your reactions like this (make sure you
specify the correct Energy of Activation units in the parm.dat spreadsheet, look for the
Ea Units field and type either Calories, Cal, Joules, J, KJ, KCAL or Kelvin:
1.323e-4, -1.2, 3000, A- +Widget-- +
C==>G+++ + F---+H20
3.2 , 0.3, 2000, E+F == > G + DNA_A_Replicated
54.34 , 2.1,5430, G = A
END ( <==-- Make sure this END is here)
) Run Kintecus with the following switch: >Kintecus c
(If you are using EXCEL: click the "Make Species Worksheet from Model"
button located on the CONTROL worksheet)
) Now copy the created ADDSPEC.TXT file as a SPECIES.DAT file (If
you are using EXCEL: skip this step!)
(i.e. >COPY ADDSPEC.TXT SPECIES.DAT )
) Edit the Initial concentration fields in species.dat for your
model and type "Y" in the DISPLAY field for species' concentrations you want to
save. (EXCEL: click the species tab located near the bottom and then edit
the same fields in the species worksheet)
) Run kintecus: >KINTECUS -ig:mass -show. (EXCEL: click
the CONTROL tab located near the bottom and then click the RUN button to
start your model!)
) If you are using the
EXCEL modules, on the CONTROL worksheet, click the Plot Results button to
plot your results!
) OPTIONAL: If you wish to do include thermodynamics (temperature and reverse rate
autocalculations), just use the THERM switch on the command line.
) OPTIONAL: If you wish to do sensitivity analysis just use the
SENSIT:1 on the command line.
shouldn't trust your kinetic/thermodynamic simulations given the size of the errors
associated with rate constants, thermodynamic data, TROE, SRI, third-body parameters,
initial concentrations, etc., etc.
Perform a full automated UncertaintyAnalysis (Monte
Carlo sampling) with the inclusion of the "-CONF"
switch on the command line. If you are using the Kintecus-Excel interface, you will see confidence
bandplots along with maximum and minimum
) OPTIONAL: If you wish to FIT
or REGRESS or OPTIMIZE (maximize product or minimize expensive or harmful
intermediates) experimental data to a model, then have your data in a text file
named (or Excel Worksheet), FITDATA.TXT with Time(s) as the first column, first row. The
species names should follow the Time(s) heading on the same row. Place your
species/temperature data under the appropriate species column (if a species is missing
data for a time point, place an "N" in the cell). Append a question mark,
"?", to the end of any number you wish for Kintecus to
regress/fit. Run Kintecus with FIT:2:3:FITDATA.TXT. You can also try
FIT:1:3:FITDATA.TXT , -FIT:1:1:FITDATA.TXT and FIT:2:1:FITDATA. Many sample
Kintecus-Excel worksheets demonstrate this feature.
